At least one (1) Solder PCB+DB or Hotswap PCB+DB should be added to your order. Daughterboard and JST cable weren’t included in “Solder PCB Only” and “Hotswap PCB Only” options, only “Solder PCB+DB” and “Hotswap PCB+DB” that will include daughterboard and JST cable. JST cable use same spec as ai03 Unified Daughterboard. If you have PCB that has same outline as Hiney H87 (with or without USB), you can use the same PCB for Origami without removing the USB so you can swap build easily into your Origami TKL.
- VIA supported. Download the JSON file here

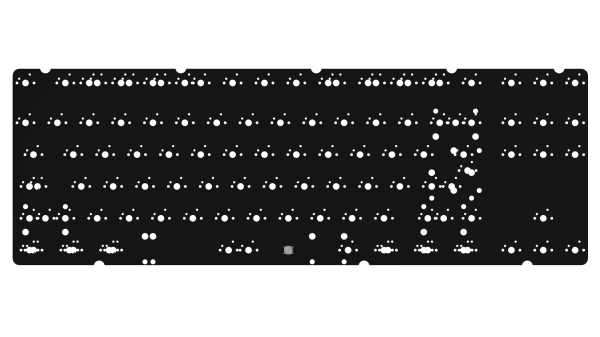

- Same outline as Hiney H87-NU
- Material: FR-4
- Thickness: 1.6mm
- Daughterboard cable length: 200mm
- Indicator light for Esc, Caps Lock and Scroll Lock
- 6 months warranty for the main PCB + daughterboard combo, no warranty for daughterboard only, all daughterboard will be tested before being shipped to you. 6 months warranty starts from when you receive the product.
Important notes:
- We strongly recommend purchasing at least one additional PCB.
- Please test the PCB before installing switches.
- There is a possibility for the hotswap socket on the multi-layout area to be crooked, especially for modifiers that are not supported by the stabilizer. We do not accept refunds/returns/replacement of units if you experience this.
